Product description

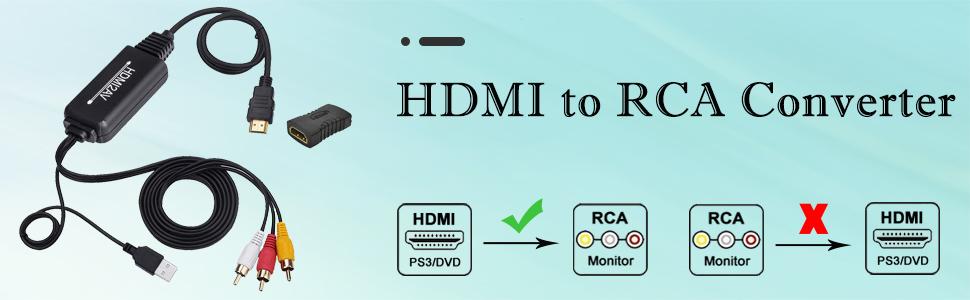

All in one HDMI to RCA Cable Converter. An bulit in HDMI to RCA chip, convert HDMI signal to RCA device. It converts quality HDMI video signal to 3RCA composite video cvbs(standard-definition 480i,576i)，for devices such as TV, VHS VCR, DVD recorders,etc, that support NTSC and PAL.Video signal transfer only, can't improve the video quality, please import HD video.
HDMI Input Resolution:
640x480@60HZ,800X600@60HZ
1024x768@60HZ,1280X720@60HZ
1280x1024@60HZ,1360x768@60HZ
1600x1200@60HZ,1920x1080@60HZ
480i/60Hz,480p/60HZ,576i/60HZ,576p/60HZ
720p 50/60HZ,1080i 50/60HZ,1080p 50/60HZ

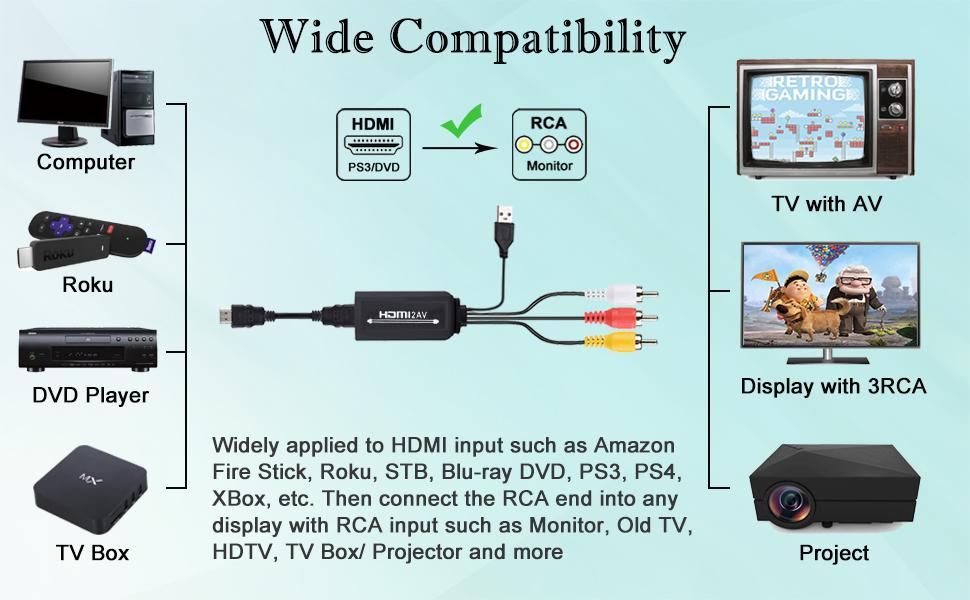

Widely Compatible
Good for personal or family: Connect Roku, DVD, cable boxes, and PS3, Xbox 360, Blu-ray machines and so on.
Can be watched by the common old TV AV interface after converted.
Important conferencing systems, can be used for display platform: After converted the HD HDMI signal of the HD camera by the converter then through the acquisition card to a computer system to facilitate remote meetings transmission.
Specifications
-Input ports: 1xHDMI
-Output ports: 1xRCA (Yellow,White,Red)
-Product Cable Length: 185cm (6.1ft)
-Color: Black
Package content:

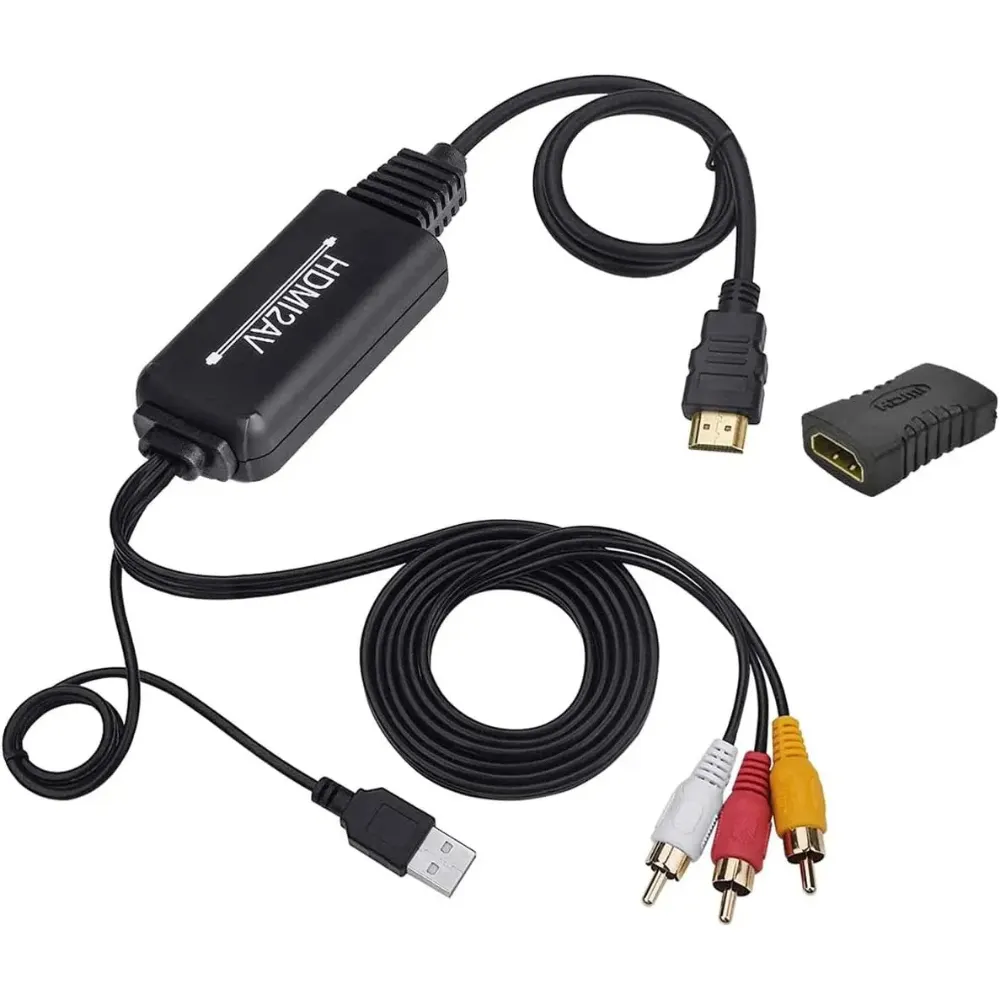

1 x HDMI to RCA Converter Cable
1 x HDMI Female to HDMI Female Couple
1 x User Manual
NOTE:
1) Please do connect the power cable with 5V power first to make the unit work before connecting to other ports
2) Video signal transferring only, no improvement of video quality
