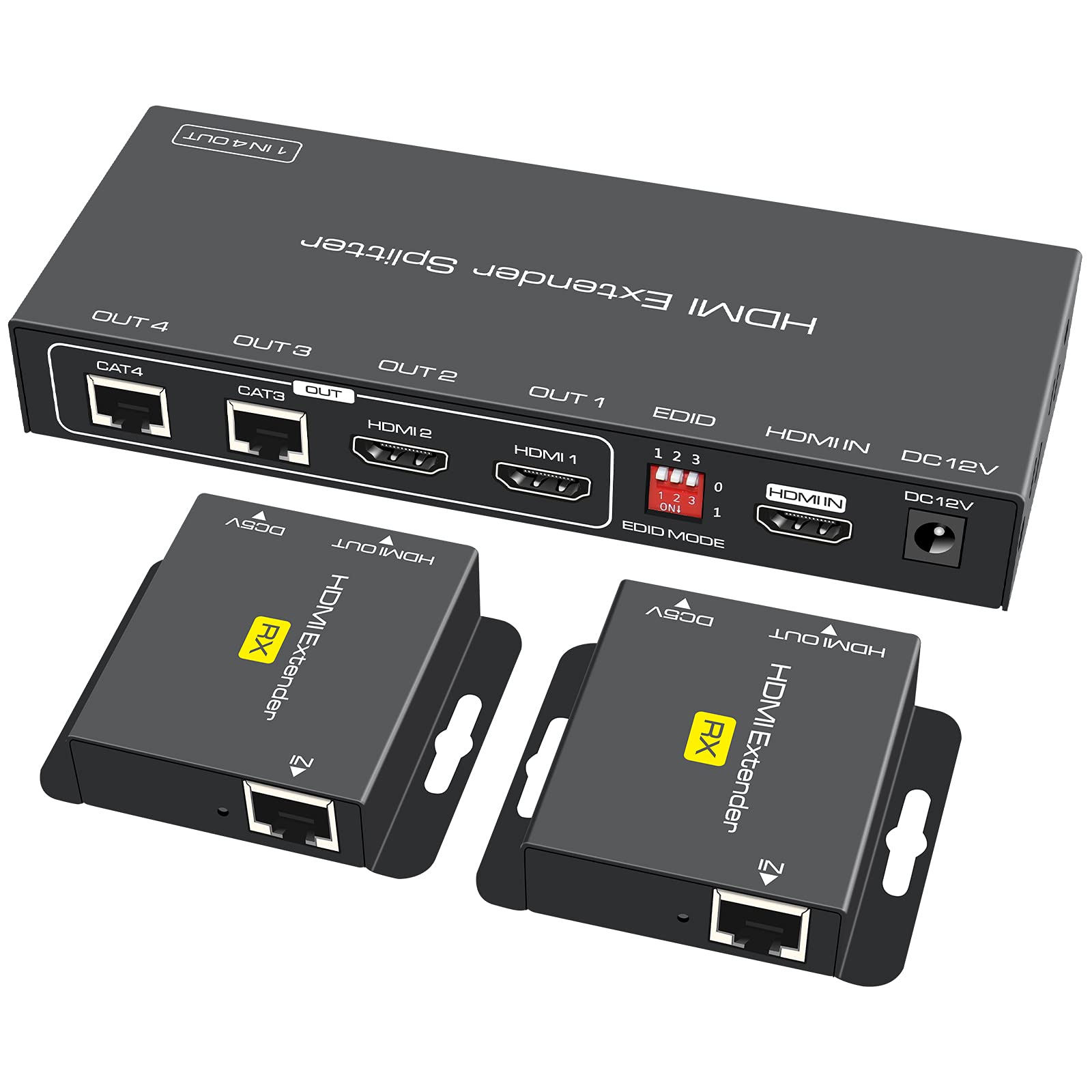

Product description

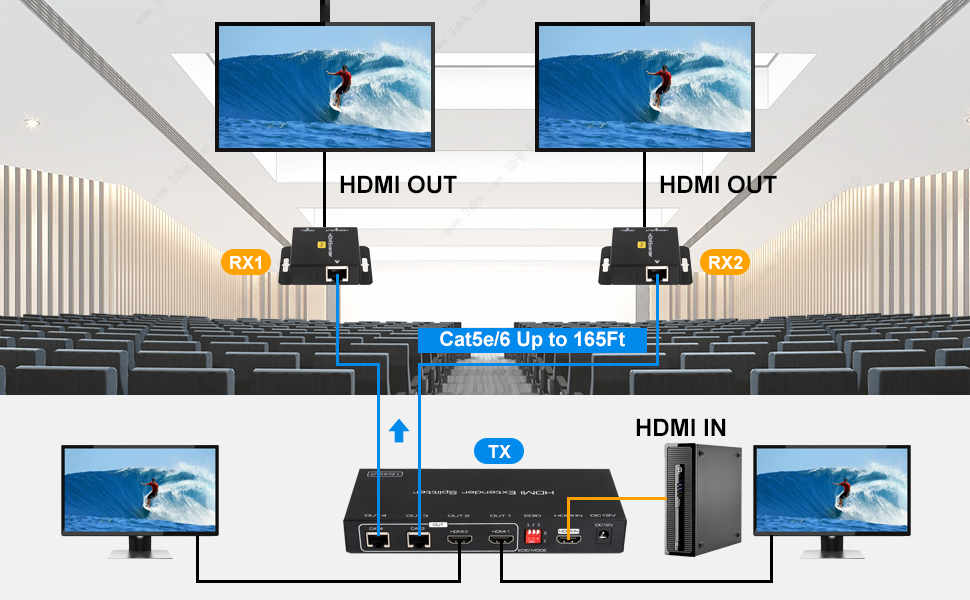

This HDMI extender splitter is divide one channel input into two 2 channels output and 2 loop out, two of which can Transmit high-definition video signals over a single Cat5e/Cat6/Cat7 cable up to 165ft. It supports high resolution up to 1080p. The extender can use for a wide range of applications requiring long-distance transmission of high resolution with high quality of its good stability and powerful security.
The HDMI extender splitter on CAT5e / 6 / 7 has a 165ft loop, which can expand the uncompressed HDMI signal through an affordable network cable while maintaining signal strength and lossless video

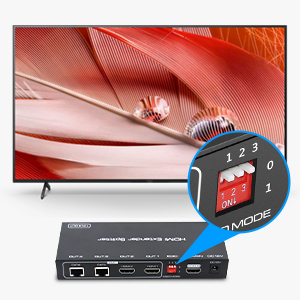

EDID Preset
According to different application requirements, the TX supports a variety of EDID preset programs to improve the compatibility of the equipment, which can better match the signal source and display to get the most suitable video and audio signal.

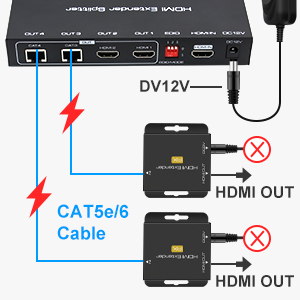

Support POC function
Using POC power supply technology, a 12V power adapter must be connected to the TX, Rx through the network cable transmission power supply can work, safe and reliable.

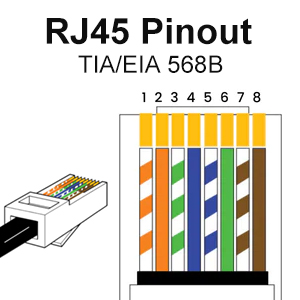

T568B standard cable sequence
HDMI extender is made of CAT5e/6 cable with T568B standard cable sequence. The wiring order is: white orange, orange, white green, blue, white blue, green, white brown, brown

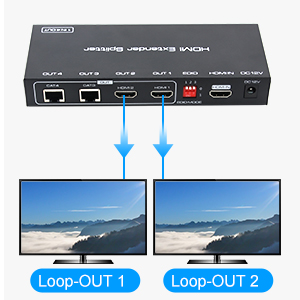

2-way loop-out display
There are two HDMI local output ports on the side of the transmitter TX, which can be connected to a display and output the signal directly to the display device

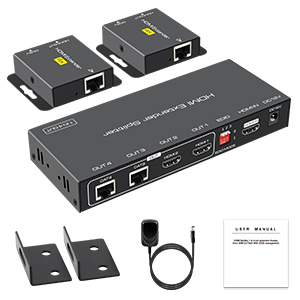

Packing list:
- HDMI-TX x 1
- HDMI-RX x 2
- Mounting Ear x2
- power adapter x 1
- User Manual x 1
Specification:
Supported resolution: / Up to 1920x1200 @ 60Hz / 3D / 1080p / 1080i / 720p / 576i / 480p
Audio Format Supported: PCM / DTS / DSD
Maximum Transmission Bandwidth: 1.65 G
HDMI input/output cable distance: 16 feet (5m) AWG26 standard HDMI cable
Power Format: Input: AC(50HZ, 60HZ) 100V-240V,Output: DC12V
