Product Description

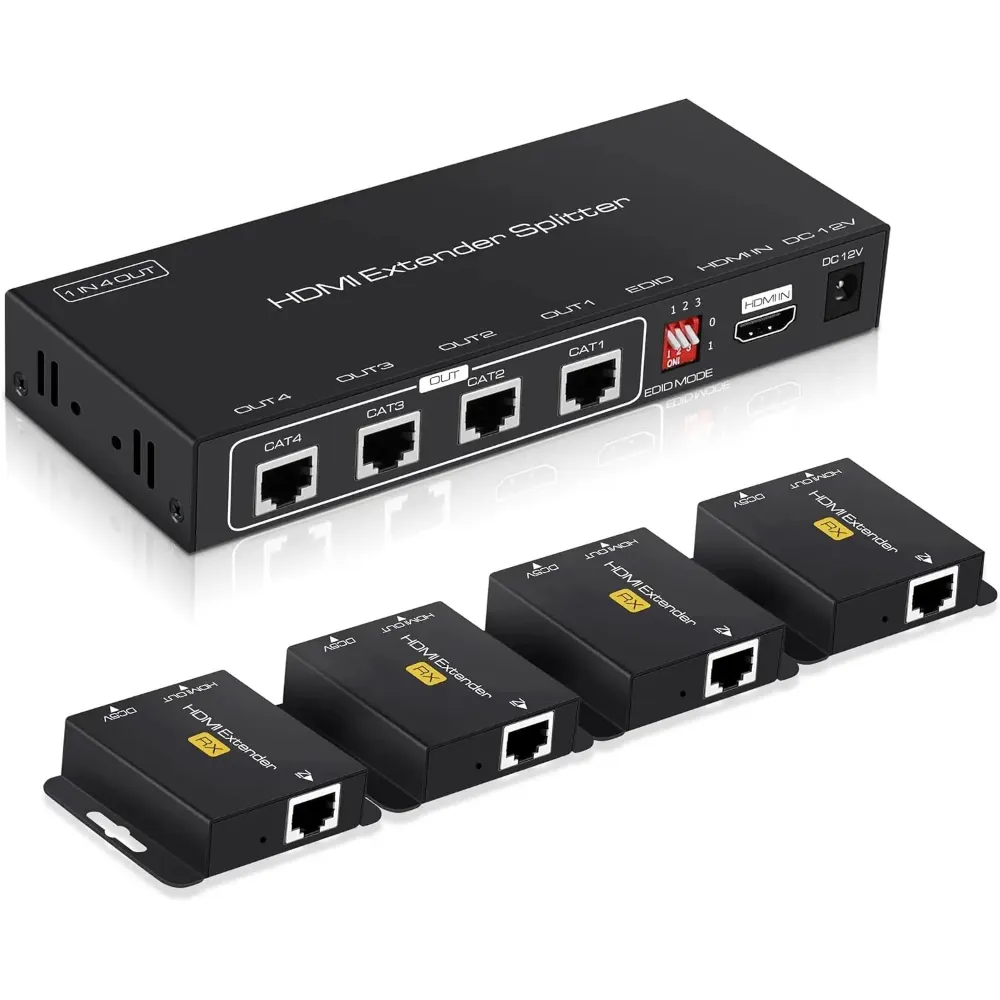

1X4 HDMI Extender Splitter 1080P@60Hz 165ft(50m)
With multiple high quality CAT5e/6/7 Ethernet cable, avedio links 4 way HDMI to Ethernet extender can extend one HDMI video source (fire stick, Blu-ray player, TV box, etc.) to 4 HDMI displays simultaneously for up to 165ft (50M).
Specifications
HDMI Resolution: 3D/ 1080P/ 1080i/ 720P/ 576P/ 576i/ 480P/ 480i
Audio Format: DTS-HD/ Doby-trueHD/ LPCM7.1/ DTS/ Doby-AC3/ DSD
Max baud rate: 4.95Gbps
Input/Output cable distance ≤5m AWG26 HDMI standard cable
Output cable distance ≤50m CAT5e/6/7 cable
POC Power Supply: POC Power Supply Technology means that the HDMI extender transmitter panel needs power supply and the receiver panel NOT need power supply, which can save more time and cost, the installation process is more convenient!!
Package Includes
4-Port HDMI Extender Splitter with Receiver x 1
DC 12V Power Adapter x 1
User Manual x 1
Fixed hanger x 2
Troubleshooting Methods
Non-Power-Connected
1.Check whether the power adapter head is plugged into the power socket correctly.
2.Check whether the power switch is on.
No Picture
1.Please to make sure that the connection device is turned on and well connected.
2.Check if the signal source is turned on and well connected.
3.Check the quality of the system connection.
4.Check whether the HDMI cable is of good quality.
Obscure Picture
1.Try to connect the cable again to make sure the connection is in good condition.
2.Check whether the HDMI cable is of good quality.
