8 Port HDMI Displayport KVM Switch

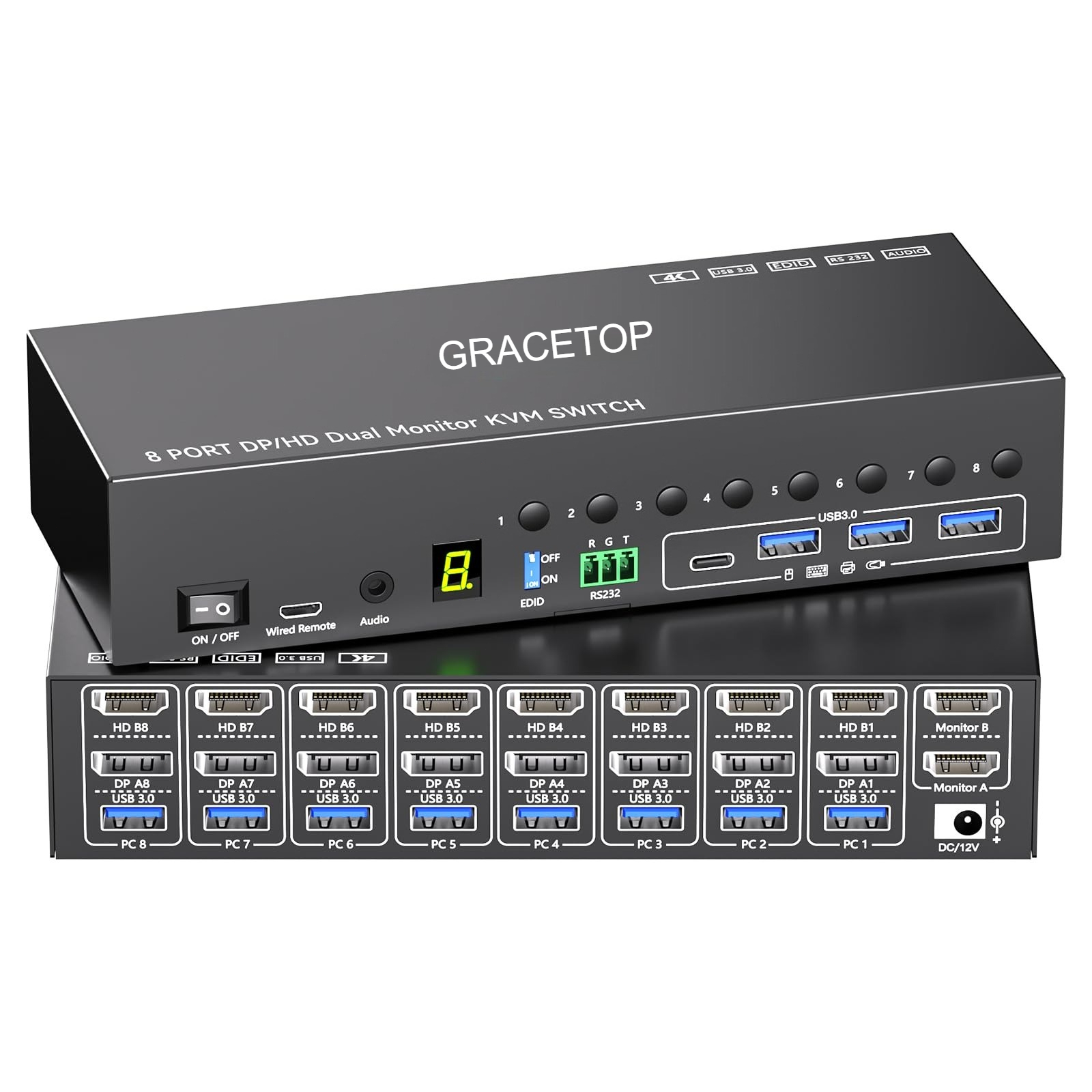

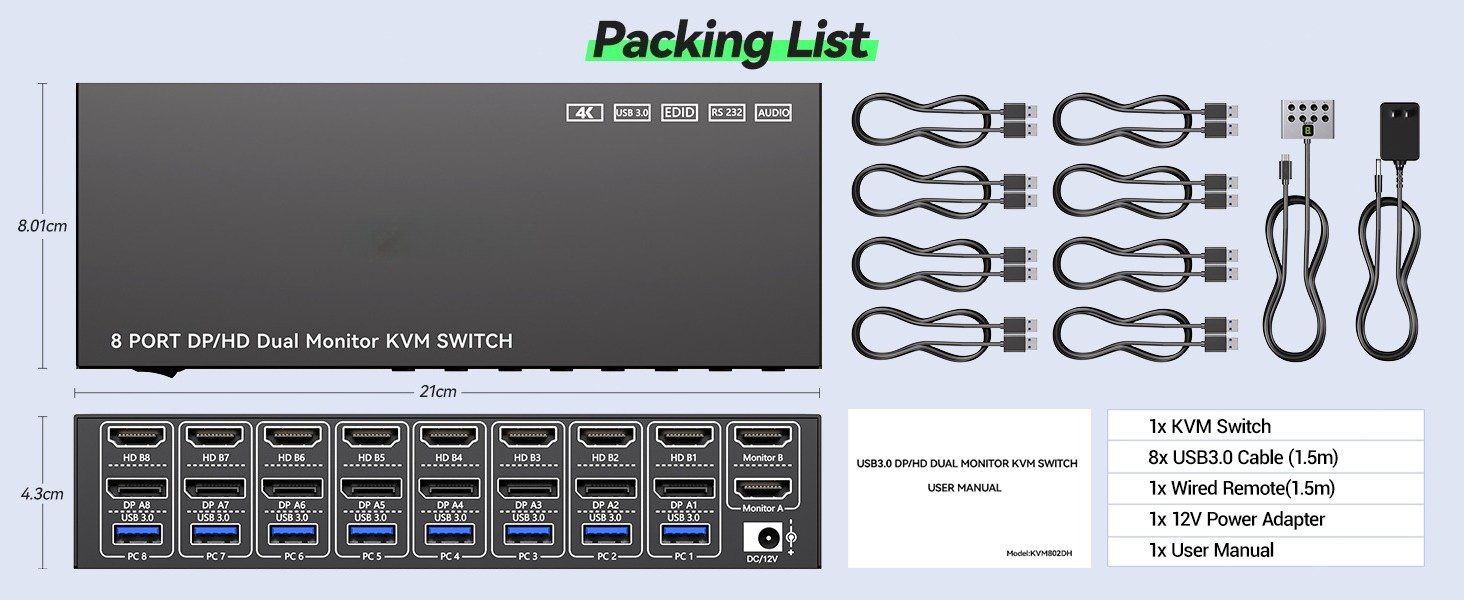

2 Monitors 8 Computers 4K@60Hz EDID Simulation, 8 PC Dual Monitor KVM Switch with 4 USB 3.0 Ports, Audio,RS232,with Wired Remote,12V Power Adapter and 8 USB Cable
Sold 0 only 999999999 item(s) left
$198.99
Color:  black
Set Name:  HDMI+DP 8 PC 2 monitor
Size:  19 cm
Quantity
Share the love
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Description

Product description

kvm switch 8 computers 2 monitors kvm hdmi

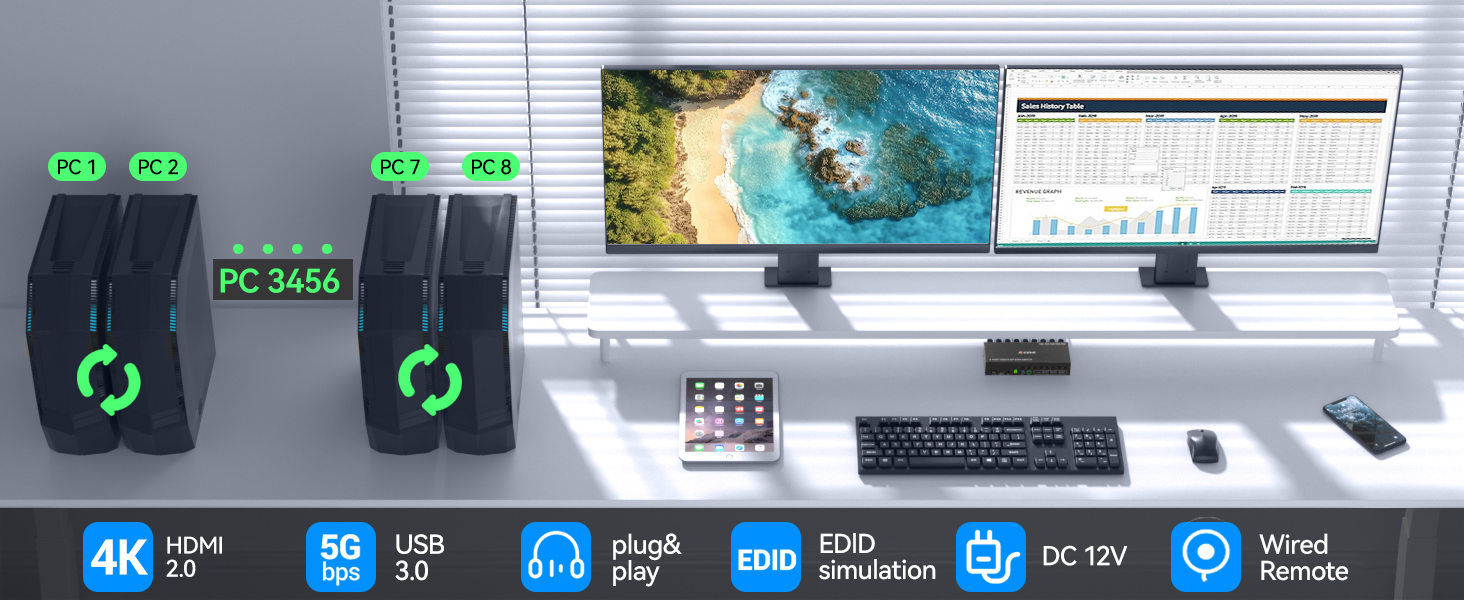

With this 8 ports HDMI DP 2 monitors KVM switch, you can switch between up to 8 computers, sharing 2 monitors and 4 USB devices. Implement one computer to output two identical or different screens.

8 computers 2 monitor kvm switch

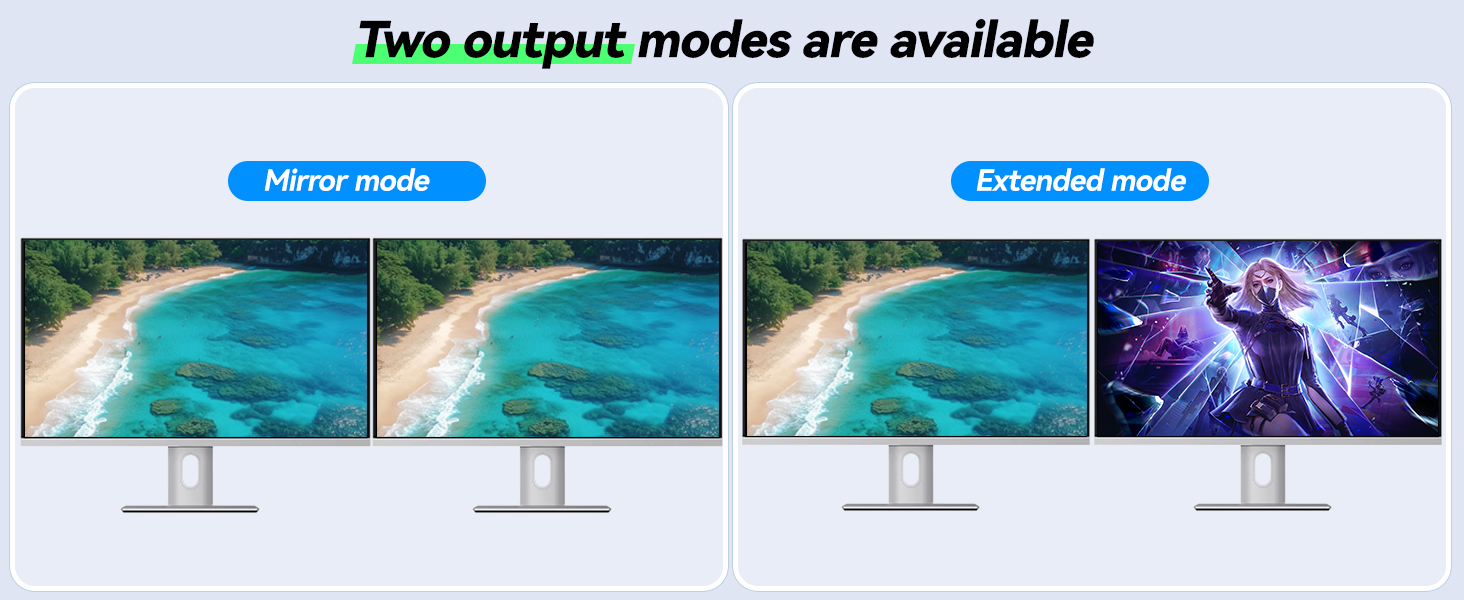

Set the output mode:

Windows OS: Press the shortcut key "WIN+P" and then select "Extension" or "mirror"

Mac OS: Select [Apple Icon] [System Preferences], click [Display] [Arrange], and then check [Mirror Display]; When [Mirror Display] is unchecked, "Extended Mode" can be achieved.

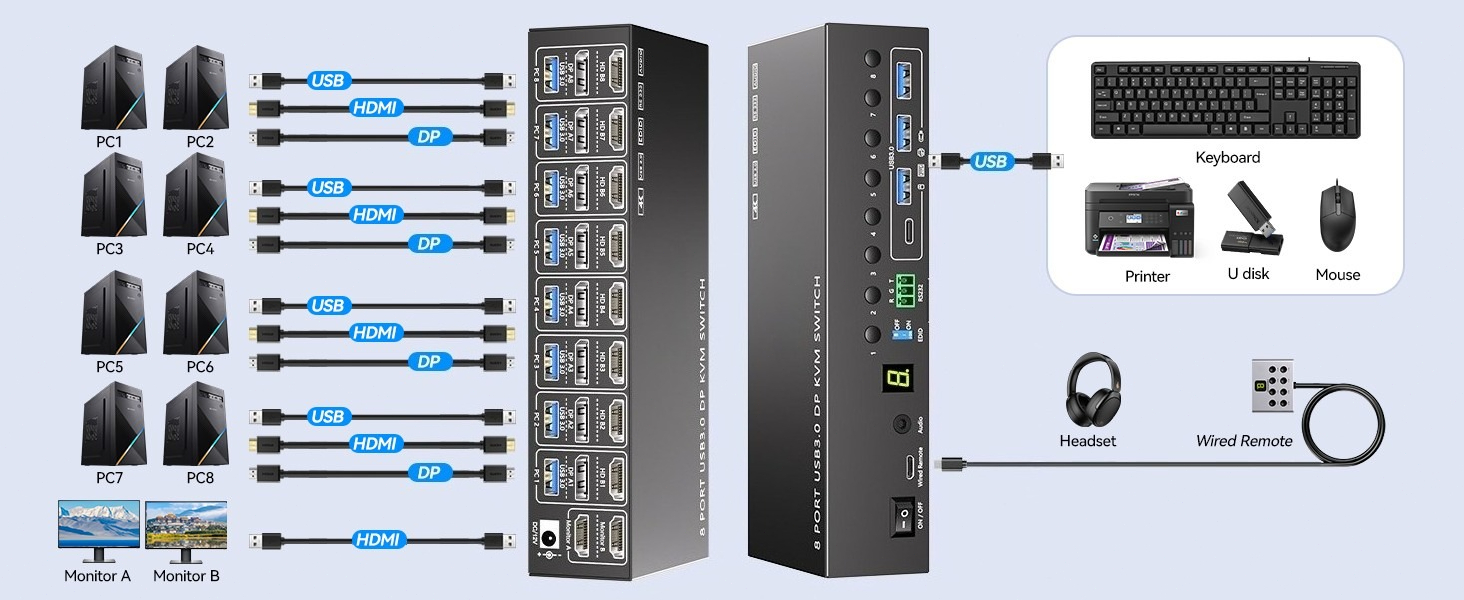

Each PC needs 1*HDMI+1*DP+1*USB cables to be connected simultaneously to achieve 2 monitors output. USB cables are the data channel between USB devices plugged into KVM switches and the PC.(supports USB-C/Displayport to HDMI cable or converter)


  • Support resolution up to 4K@60Hz and backward compatible 4K@30Hz, 1920*1080@120Hz,etc.

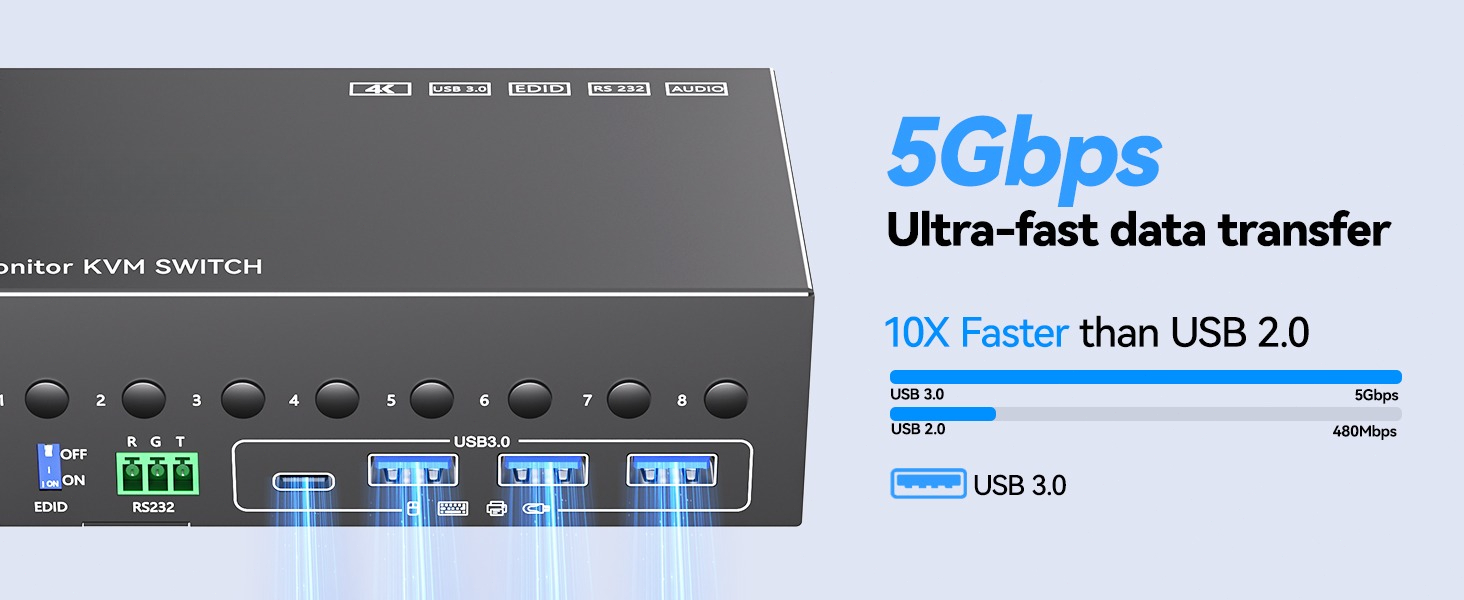

  • With 4 USB 3.0 ports for keybaord, mouse, U disk,support ultra-fast data transfer up to 5Gbps
8 ports kvm switch dual monitor edid

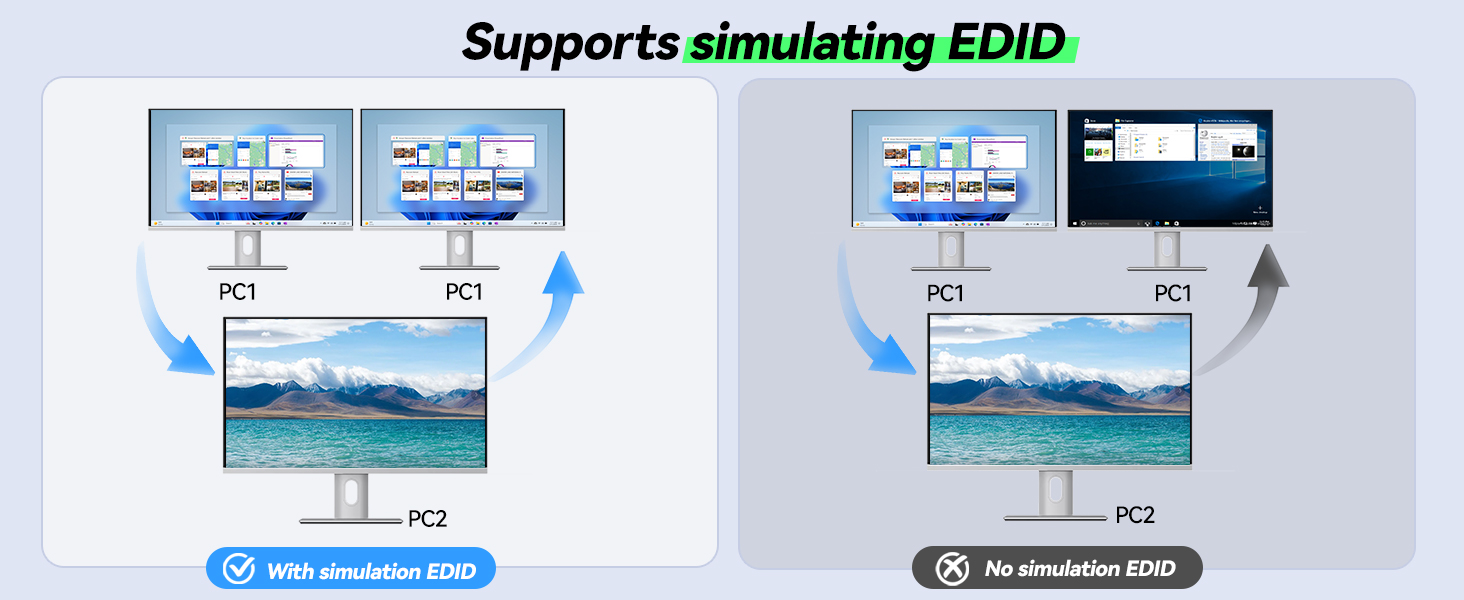

With EDID simulation - When switching between computers, the window layout remains unchanged.,You can turn ON/OFF the EDID emulation function as needed

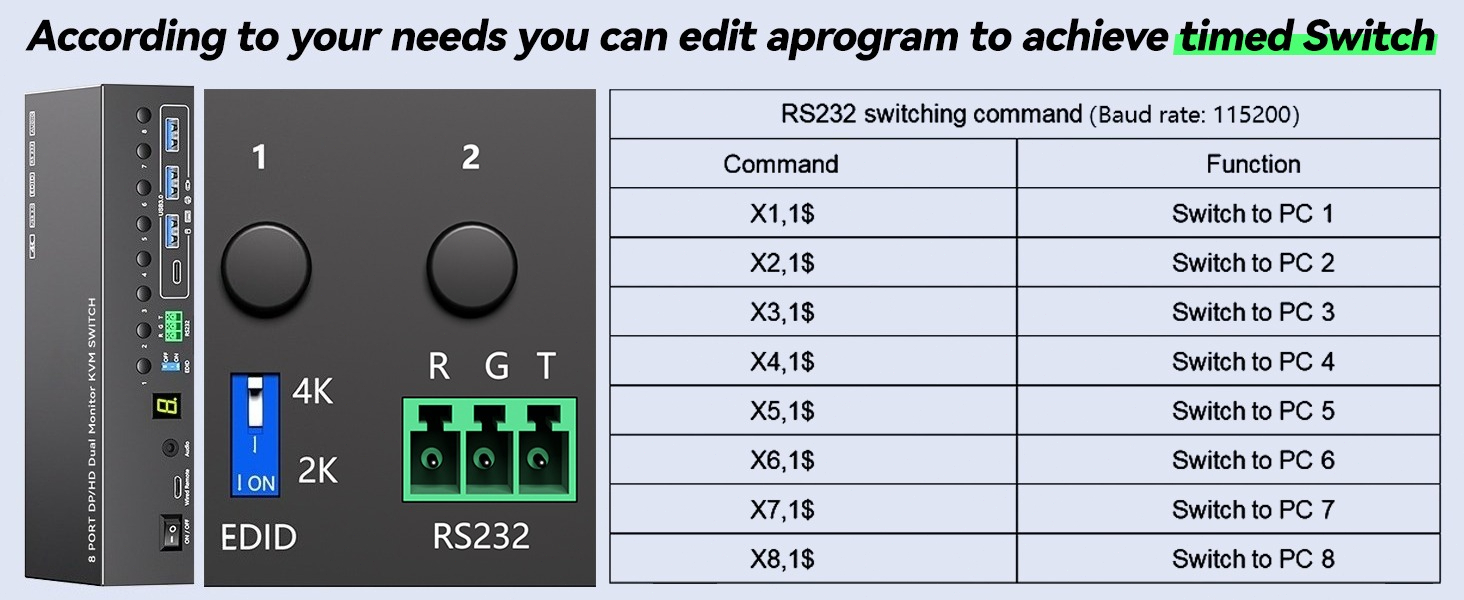

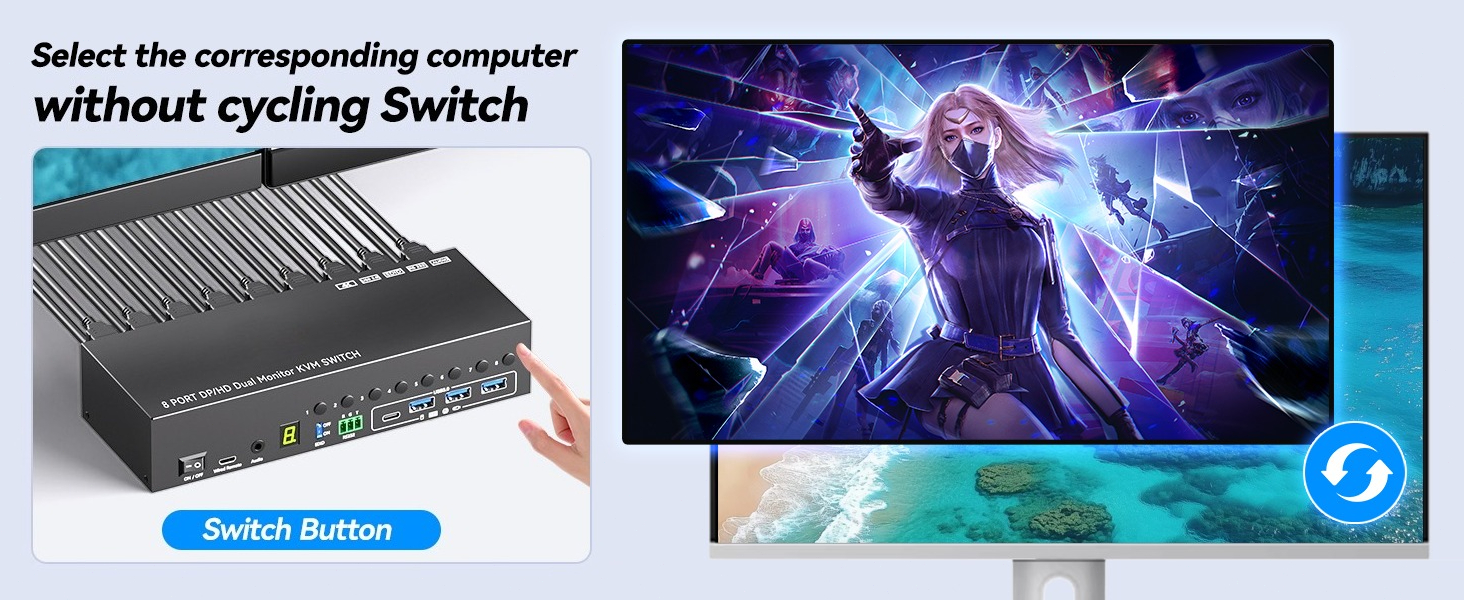

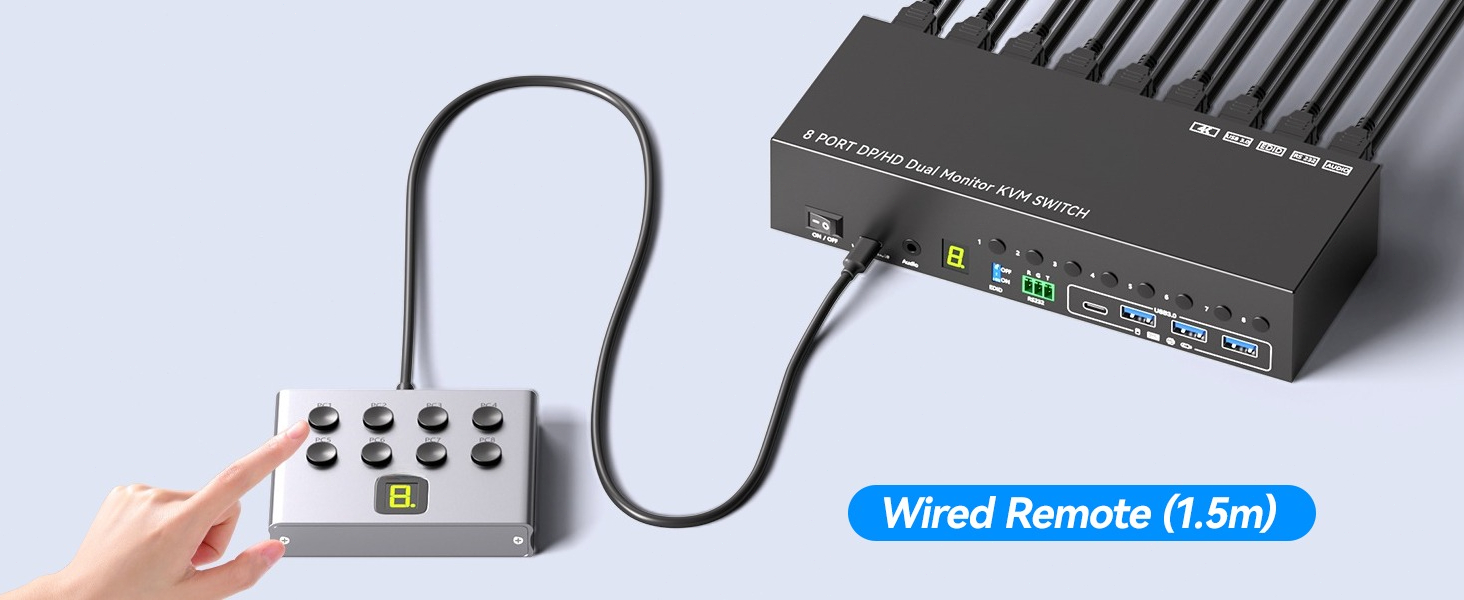

This 8 ports HDMI displayport KVM switch supports three switching modes: 1.Wired remote (length: 1.5m, with digital screen display, included); 2.panel buttons(1-8 corresponding to 8 PCs); 3. RS232 (please use at baud rate: 115200).
