SDI Video Capture Card with SDI Loop Out/HDMI, SDI to HDMI Converter, 1080P60fps SDI to USB3.0 Audio Video Capture Device with SDI Loopout USB Video Record for SDI Camera Live Streaming

$75.85 21 % $95.85

0 sold

Qty

Product description

Product Description

SDI Video Capture Card with SDI/HDMI Loop-Out – USB 3.0 Compatible

Key Features:

SDI Video Capture Card and SDI/HDMI Loop-Out:

This advanced capture card supports 1080P at 60Hz HDMI loop-out, ensuring pristine video quality for your streaming or recording needs.

With USB 3.0 compatibility, enjoy smooth 1080p at 60fps output, perfect for high frame rate video capture.

Enhanced Stability and Ultra-Low Latency:

Crafted from high-quality aluminum alloy for superior heat dissipation, this capture card offers exceptional stability and a clearer picture.

The new cable layout design minimizes latency and avoids blue screens or lag, making it ideal for real-time applications like gaming and live streaming.

Versatile Audio Support:

Plug in a 3.5mm headset or microphone to add commentary or external audio to your streams and recordings.

Note: Party chats are not recorded, focusing on primary audio sources for cleaner sound capture.

Wide Compatibility Across Platforms:

Effortlessly stream to platforms like Facebook, YouTube, or Twitch.

Compatible with multiple operating systems including Windows 7/8/10, Mac OS, Linux, Android, and various software such as OBS Studio, PotPlayer, VLC, and more.

Easy Setup and Driver-Free Operation:

Enjoy plug-and-play functionality with no driver installation required.

Supports standard UVC/UAC protocols, making it easy to integrate into your existing setup.

Technical Specifications:

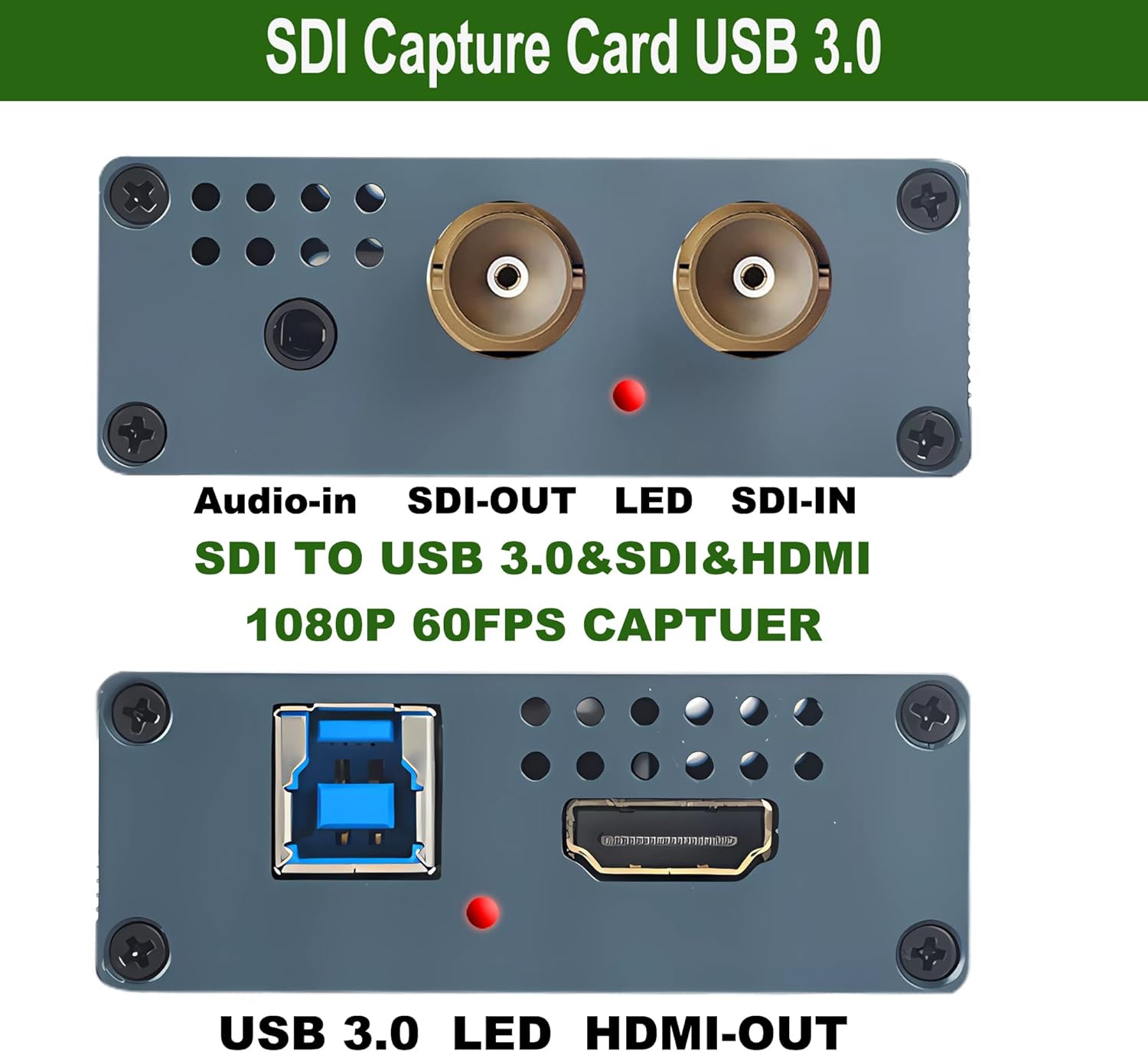

Input Interfaces: HD-SDI / 3G-SDI / SD-SDI ( MAX 1080 60FPS )

Output Interfaces: USB 3.0 & HDMI & SDI (MAX 1080P 60FPS)

Audio Port: 3.5mm ports

Supported Video Resolutions: 1920x1080, 1360x768, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 720x480, 720x576, 640x480

Video Formats: YUY2, MJPEG

Frame Rates: 60 fps, 50 fps, 40 fps, 30 fps, 25 fps, 15 fps, 10 fps

Audio and Video Capture Protocol: Standard UVC/UAC

Driver: Driver-Free, Plug-and-Play
