AHD Capture Card with OTG, 1080P30 720P60 AHD to USB Video Capture Card for AHD 1080P HD Backup Camera Streaming Game Streaming Video Recording for Windows, Linux, OS (USB-A)

GRACETOP AHD video capture card

This is a cost - effective audio and video capture module compliant with UVC/UAC. AHD Video Capture supports AHD video signal and audio input, automatically adapting to PAL and NTSC formats, as well as 720P and 1080P resolutions. It can output signals to audio and video capture devices on computers and mobile phones via the USB interface. It has plug - and - play and USB drive - free features and is compatible with Windows, Linux, Android, Mac OS, etc.

Function Introduction

Signal Conversion: It converts AHD video and audio signals into USB signals, facilitating audio and video signal collection and recording on devices like computers, laptops, and mobile phones.

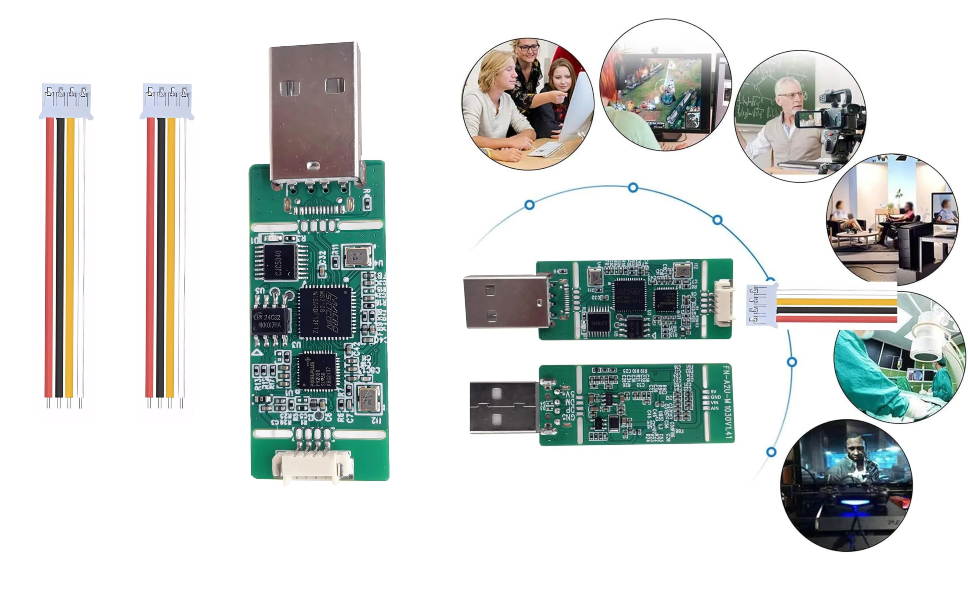

Versatile Applications: It is widely used in security monitoring, medical equipment video capture, enterprise video conferencing, education, phishing detection, and project integration.

Software Compatibility: Compatible with computer acquisition software such as OBS, POTPLAYER, AMCAP, VLC, and USB camera mobile acquisition software.

Instructions for Use

Connect AHD Signal Source: Connect the AHD signal source to the 1.25 * 4 pin port of the module. The left - to - right interfaces are 5V output GND, video input, and audio input.

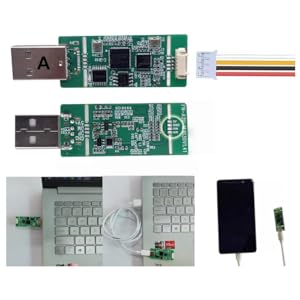

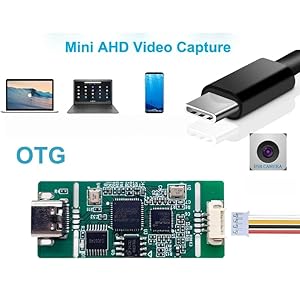

Connect Output Devices: Connect computers, phones, tablets, etc., through the USB or TYPE - C ports of the module.

Open Collection Software: Open the corresponding collection software on the computer or mobile phone to display the screen.

Product Parameters

Input Interface: 1.25mm * 4pin terminal block

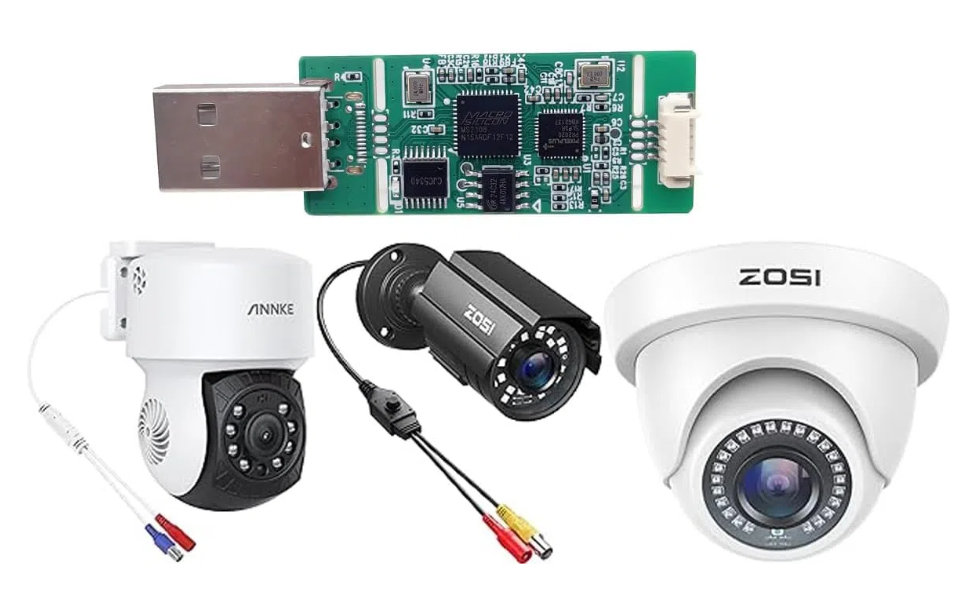

Input Signal: AHD 720P and 1080P signals (compatible with PAL and NTSC formats) (Backup Camera, AHD Security Camera)

Output Interface: USB TYPE - C

Output Format: MJPEG、YUY2

Video Output Resolution and Frame Rate:

MJPEG format: 1920x1080 (30 frames), 1280x720 (60 frames), 800x600, 720x576, 720x480, 640x480, 480x320, 320x240

YUY2 format: up to 1920x1080 (5 frames), 1280x720 (10 frames), 720x576 (25 frames), 720x480 (30 frames), 640x480, 480x320, 320x240

Audio Output: 48KHZ stereo

Audio and Video Protocol: Standard UVC/UAC

Driver: No installation required, plug and play

Operating System Support: Microsoft Windows/Linux/Android/MAC OS

Common Collection Software: OBS/Potplayer（Windows）

Product Power Consumption: <3Wat

Product Size: 1.9 * 4.5cm / 0.75x1.77in

Product Weight: 10g

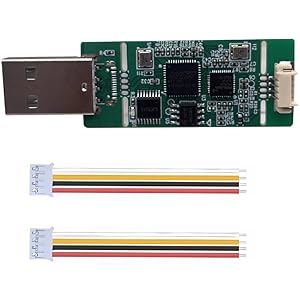

Package Contents

1x AHD Video Capture,

2x 1.25mm*4pin Cable

1x advanced storage box.
