Product description
Specification
Input Video Signal: 0.5-1.0 Volts PP
Input DDC Signal: 5 Volts P-P (TTL)
Max Single Link Range: 8K@60Hz, 4K@120Hz, 1080P@240Hz
Output Video: HDMI 2.1, HDCP 2.3/ 1.1/ 1.2/ 1.3/ 1.4/ 2.0/ 2.2
Resolutions DTV/ HDTV: 480P/ 576i/ 576P/ 720P/ 1080P/ 2160P/ 4320P
HDMI Version: HDMI 2.1
EDID Duration: 4 seconds
Power Supply: 5V/2A
Frequency Bandwidth: 48Gbps
Deep color: 30bit, 36 bit, 48 bit per pixel
Digital Audio Format: DTS-HD/ Dolby Atmos/ Dolby true HD/ Digital 7.1CH/ LPCM 7.1/ DTS/ Dolby AC3/ DSD/ DTS:X

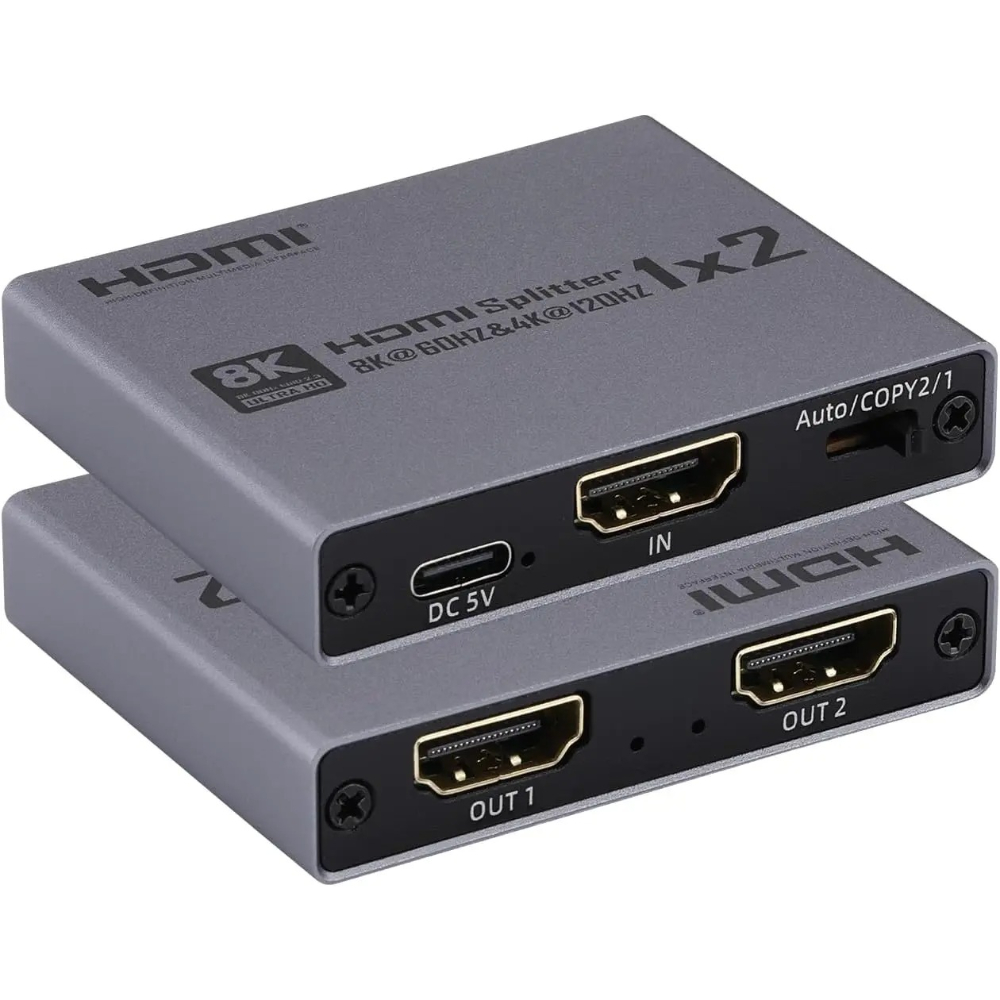

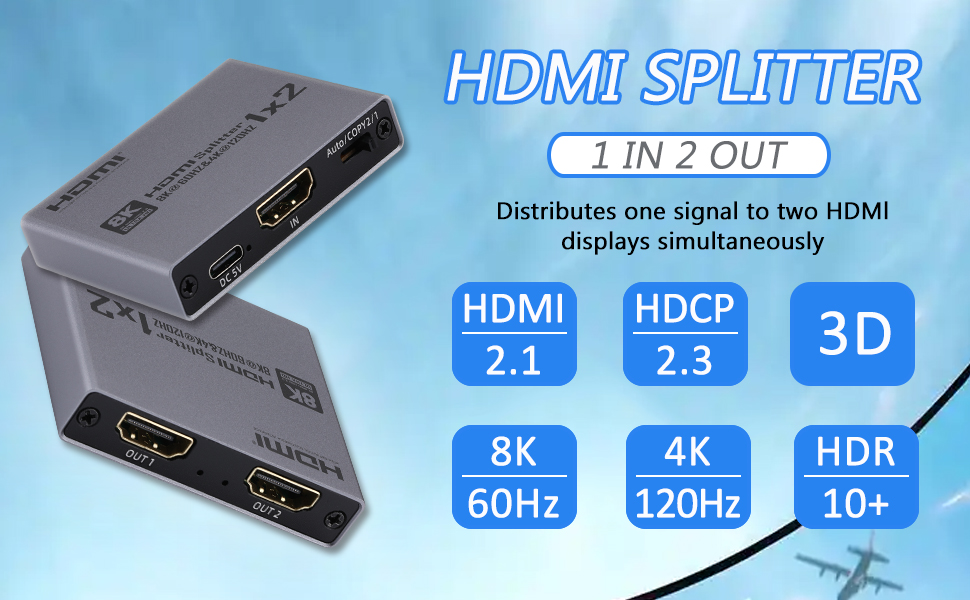

The 1x2 HDMI Splitter support Video:
8K@60Hz vrr
4K@120Hz RGB 4:4:4
1080P@240Hz
HDR Dolby Vision, HDR 10+
Supports HDCP2.3, HDMI 2.1, EDID, 3D, RGB 4:4:4,
Ultra HD Max Resolution 8K@60Hz (4:4:4).
Supports Audio: Supported DTS-HD, Dolby-trueHD, DTS, Dolby-AC3, DSD etc.

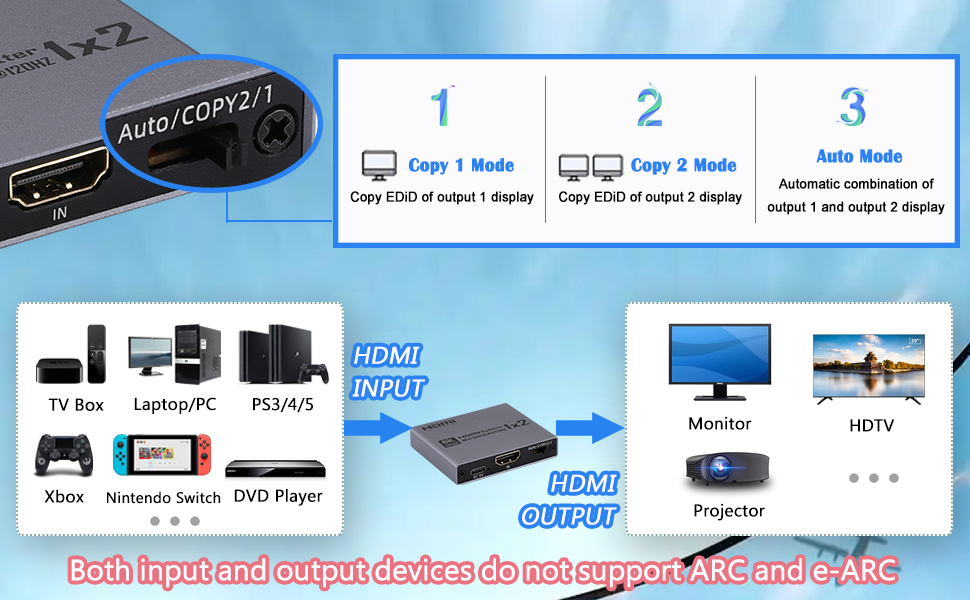

Auto Mode (Adaptive EDID ):
Automatic combination of output 1 and output 2 port display:

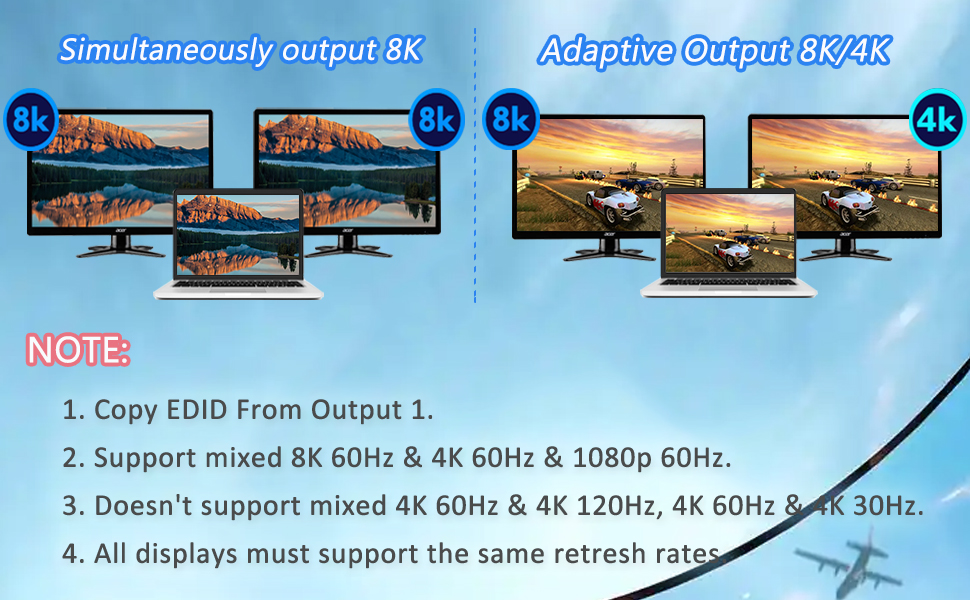

1: Copy 1 Mode: Copy EDID of output 1 display
2: Copy 2 Mode: Copy EDID of output 2 display.
And It have 2 Modes:

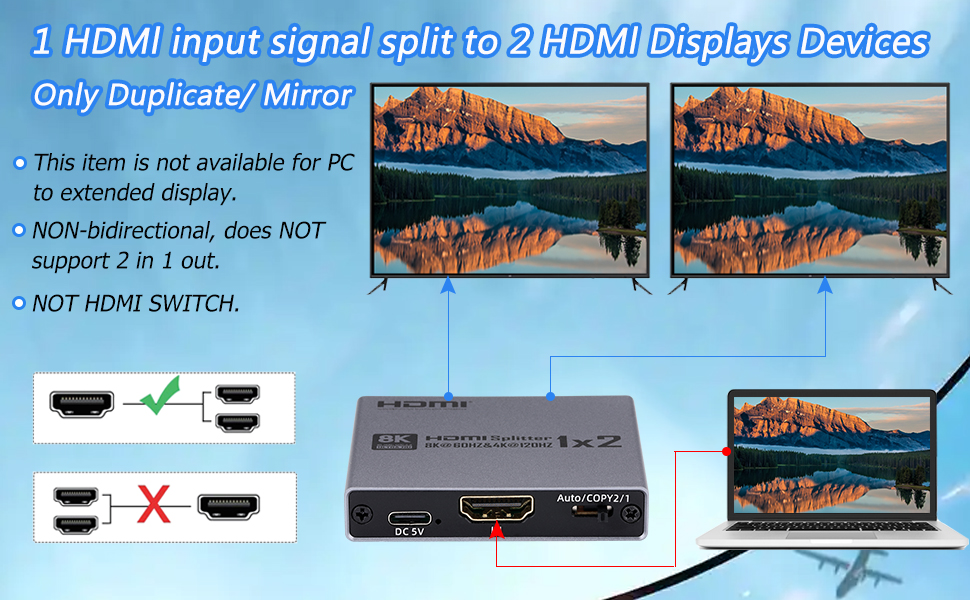

1: 1x2 HDMI Splitter Mode （Can connect two TVs or two monitors simultaneously.)
2: Mixed Mode (Can connect one TV and one monitor simultaneously.)
● Plug and play, no software required, easy to access.
● Transfer HDMI input output signal up to 26ft (Input 16 ft and output 10ft ).
● Smart EDID management: EDID HDMI Splitter provides 3 switching modes that can be meet for different resolution needs. With flexible EDID switching you can set the desired output signal for your video sources to improve compatibility with your display or projector and works stability.
● HDMI Input compatible with any HDMI device: such as PS4/ Roku/ Fire TV/ Blu-ray players/ PS4 Pro/ PS3/ Beamer/ Laptop and other HDMI signal source.
